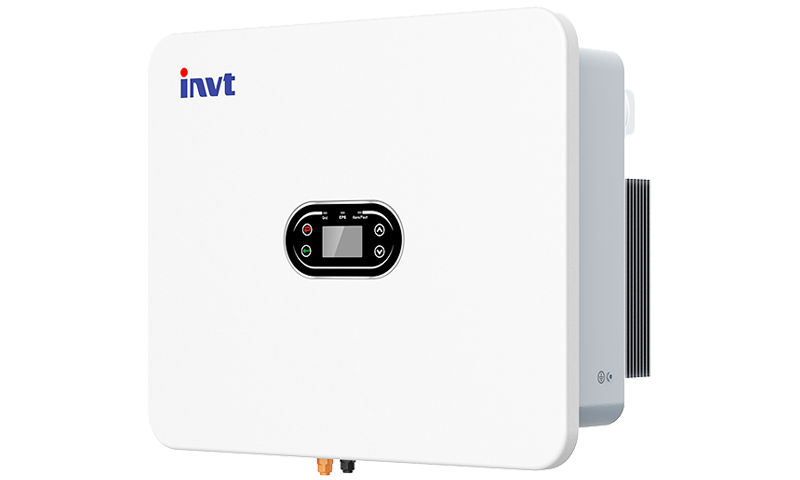

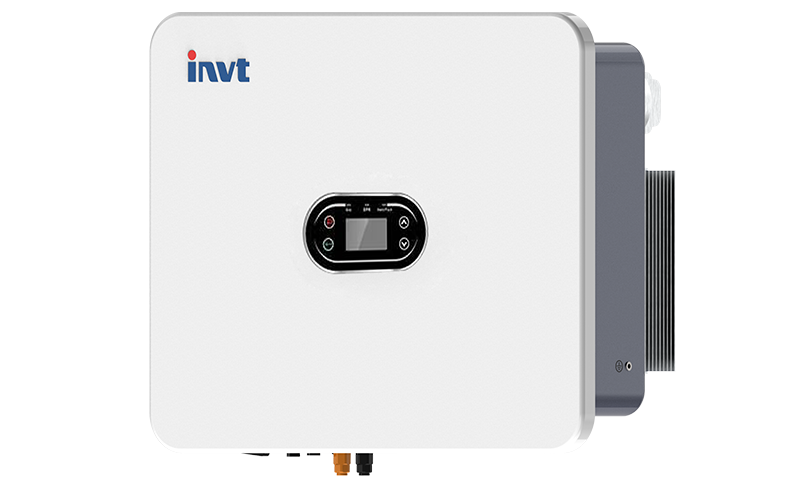

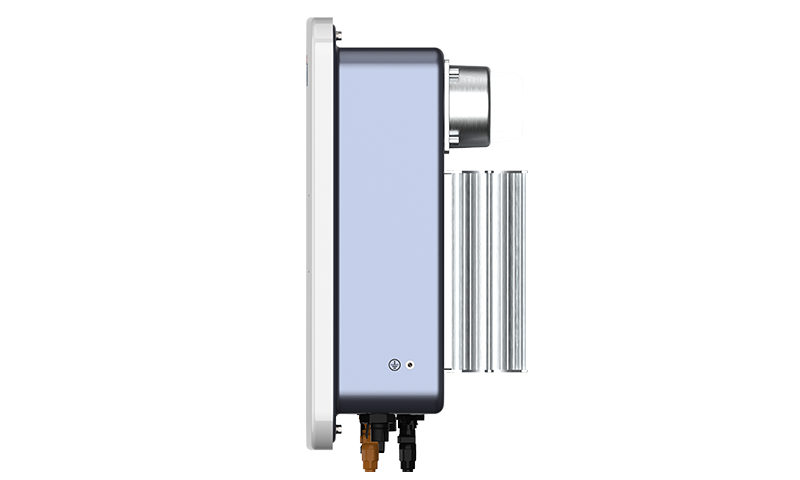

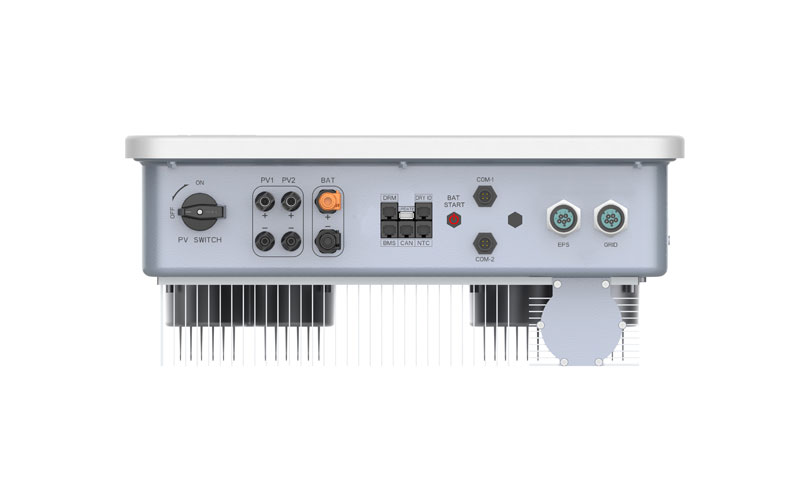

XD 5-12KTR

Three Phase Hybrid Inverter

Key Feature

XD 5-12KTR is the latest three-phase energy storage inverter designed for households and small commercial solar power plants. It has built-in self-generation and self-consumption, peak shaving and valley filling, battery priority, backup power, and other operating modes. Additionally, it also boasts a range of energy storage solutions, including multiple units in parallel, three-phase unbalanced output, Anti-reflux, etc. With its comprehensive feature set, the XD 5-12KTR is an ideal choice for those seeking a reliable and efficient hybrid inverter for their solar power plant.
  • 160% DC input oversizing, Max. PV input current 20A
  • Max. charge/discharge current 50A
  • 110% output power oversizing, 200% peak output power
  • Smart I-V Curve Diagnosis Function: locate PV string faults accurately and automatically detect faults
  • IP66 protection: support outdoor installation
  • DC & AC Type II SPD: prevent lightning damage
  • Plug & Play, EPS Switching Under 10ms
  • AFCI Function (Optional): when an arc-fault is detected the inverter immediately stops operation
  • Multiple working modes


Specification
　 XD5KTR XD6KTR XD8KTR XD10KTR XD12KTR
Input（PV）　
Max. PV Input Power 8kW 9.6kW 12.8kW 16kW 19.2kW
Max. PV Input Voltage 1100V
Start-up Voltage 160V
Rated Voltage 600V
MPPT Voltage Range 150V - 1000V
Number of MPP Trackers 2
Number of String per MPPT 1/1
Max. PV Input Current 20A
Max. Short Circuit Current per MPPT 40A
Output（AC）　
Rated Output Power 5kVA 6kVA 8kVA 10kVA 12kVA
Max. Output Power 5.5kVA 6.6kVA 8.8kVA 11kVA 13.2kVA
Max. Output Current 7.2A 8.7A 11.6A 14.5A 17.4A
Rated Voltage 230V / 400V
Rated Frequency 50Hz / 60Hz
THDi(@Rated Power) <2%
Power Factor 0.8 leading~0.8 lagging
Output（EPS）　
Max. Output Power 5.5kVA 6.6kVA 8.8kVA 11kVA 13.2kVA
Peak Output Power，Time 10kW, 60s 12kW, 60s 16kW, 60s 20kW, 60s 20kW, 60s
Rated Voltage, Frequency 230V / 400V, 50Hz
THDv(@Rated Power) ＜3%
Switch Time ＜10ms
Battery　
Battery Type Lithium, Lead-acid
Battery Voltage Range 120V - 600V
Max. Charge / Discharge Current 50A
Communication CAN / RS485
Efficiency　
Max. Efficiency ＞98.2% ＞98.4%
EU Efficiency ＞97.6% ＞97.8%
Battery Charge / Discharge Efficiency ＞97.6% ＞97.8%
Protection　
DC Switch Yes
DC Reverse Polarity Protection Yes
Anti-islanding Protection Yes
AC Short Circuit Protection Yes
Residual Current Monitoring Yes
Insulation Resistance Monitoring Yes
Ground Fault Monitoring Yes
Over Current / Voltage Protection Yes
I-V Curve Scan Yes
Battery Soft Start Protection Yes
Surge Protection Type II
AFCI Protection Optional
Communication　　　
Display LCD
Communication RS485 / CAN / WIFI / 4G / LAN / Bluetooth
Standard Compliance　　
Certification IEC/EN 62109-1/2, IEC/EN 61000-1/3, EN50549, IEC 61727/62116,
VDE 4105, CEI 0-21, UNE217001, UNE217002, RD647, NTS
General Data
Dimension（W x H x D） 534 x 440 x 220 mm
Weight <30Kg
Operating Temperature Range -30℃～+60℃
Cooling Method Natural
Protection Degree IP66
Max. Operating Altitude 4000m
Noise <35dB
Relative Humidity 0~100%
Self-consumption ＜10W
Topology Transformerless
