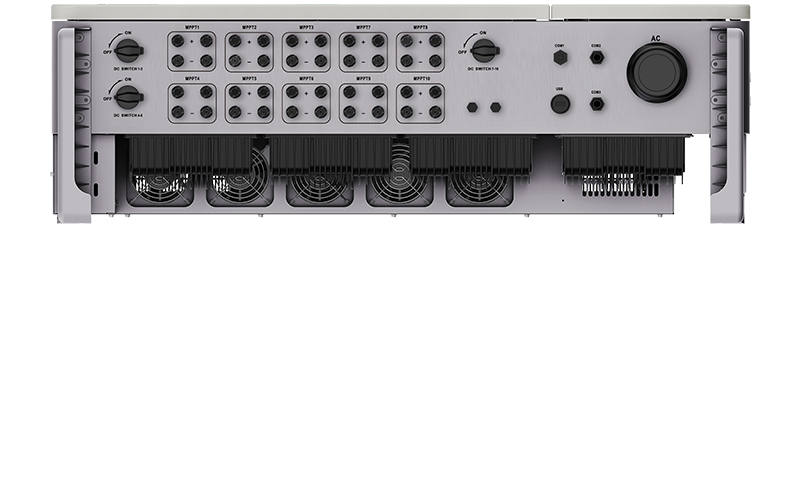

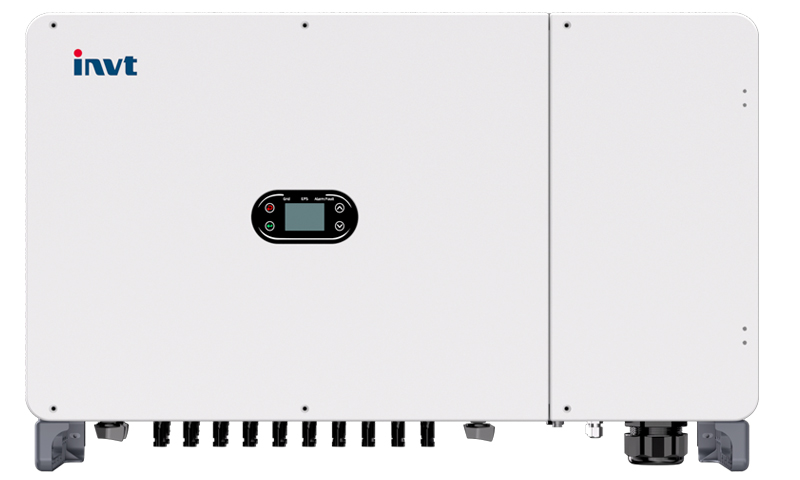

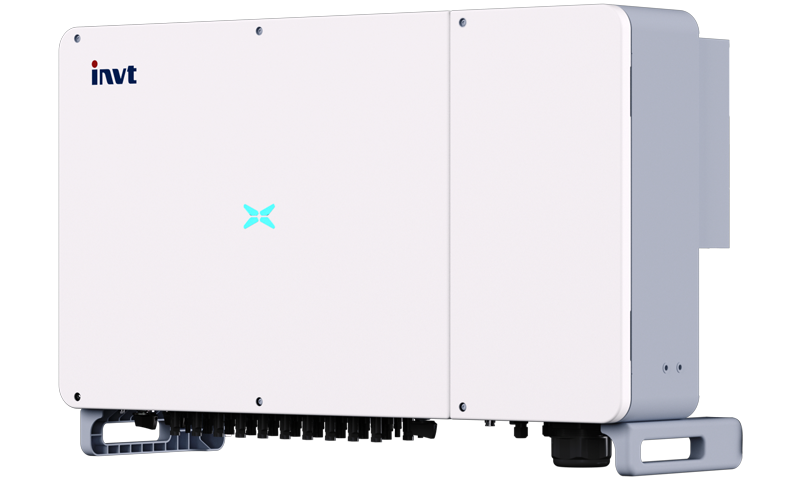

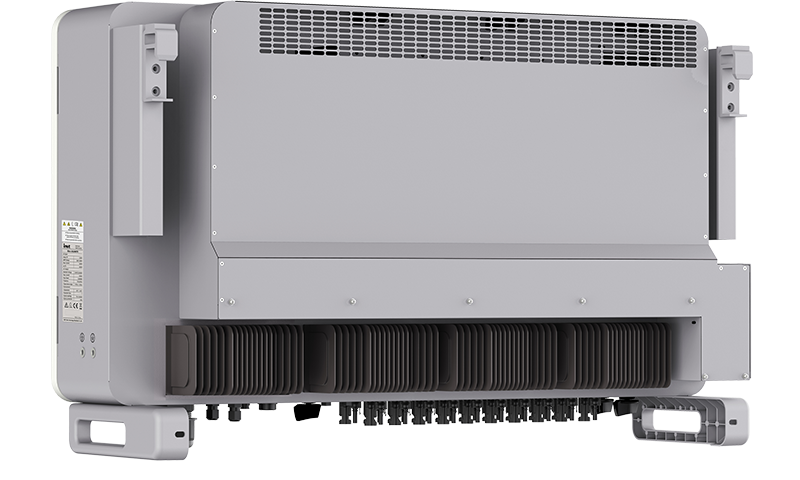

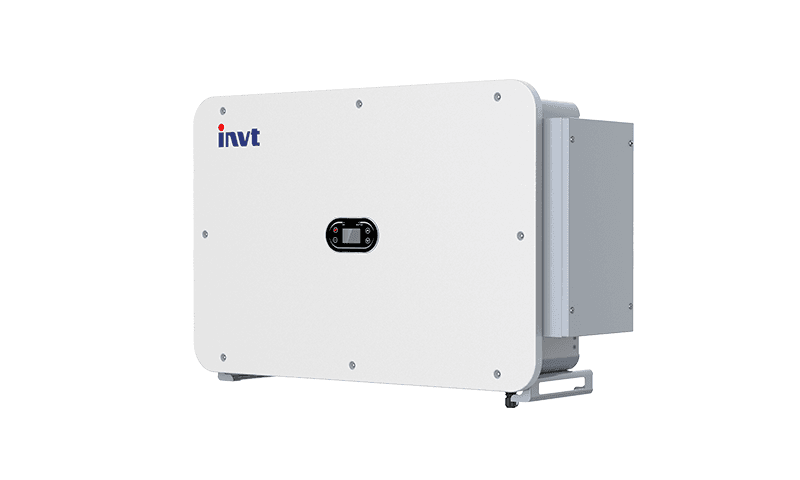

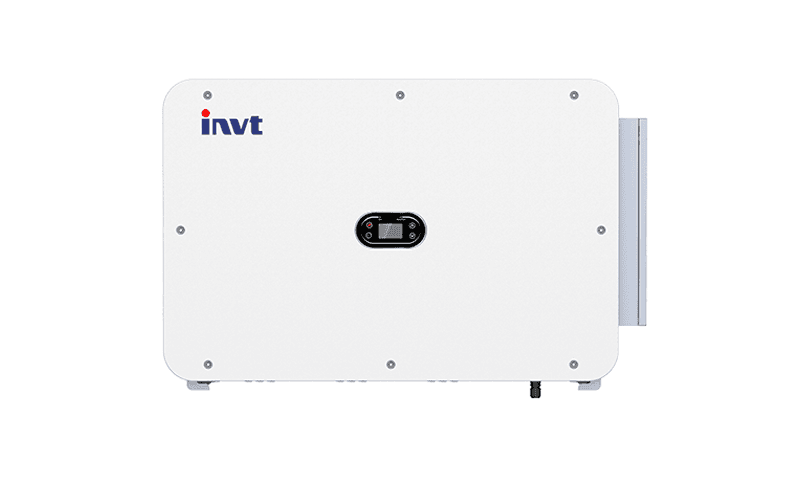

XG 100-136KTR

Three Phase On-Grid Solar Inverter

Key Feature

XG 100-136KTR three-phase on-grid solar inverters have high power density and are equipped with one-stop intelligent data management platform to provide flexible and efficient solutions for larger industrial and commercial power stations, large poverty alleviation power stations and large ground power stations.
  • 9-12 MPP Trackers, high single circuit tracking accuracy, fast dynamic response and higher power generation
  • 150% DC Input Oversizing
  • Maximum efficiency of 98.7%. Wide MPPT voltage range: 180V-1000V
  • Compatible with high power modules
  • Smart I-V Curve Diagnosis Function: locate PV string faults accurately and automatically detect faults
  • Intelligent Fault Detection: ac-side voltage and current waveforms real-time recorded, fast fault location
  • Support RS485(WiFi/DRM/Bluetooth optional): remote monitoring and operation via PC or mobile phones
  • IP66 Protection degree: support outdoor installation
  • DC & AC Type II SPD: prevent lightning damage
  • AFCI Function (Optional): when an arc-fault is detected the inverter immediately stops operation


Specification
  XG100KTR-F XG110KTR-F XG136KTR-LF XG136KTR-XF
Input (DC)
Max. Input Power 150kW 160kW
Max. Input Voltage  1100V
Start Voltage 250V
Rated Input Voltage 620V 730V 780V
Full-load MPP Voltage Range 530V ~ 850V 560V ~ 850V
MPPT Voltage Range 180V ~ 1000V
Number of MPP Trackers 9 10 12
Number of String per MPPT 2
Max. Current per MPPT 30A
Max. Short Circuit Current per MPPT 40A
Output (AC)
Max. Output Current 158.8A 174.6A 160.4A
Rated Output Power 100kW 110kW 136kW
Max. Output Power  110kVA 121kVA 150kVA
Rated Grid Frequency 50Hz / 60Hz
Rated Grid Voltage 230Vac / 400Vac, 3L / N / PE, 3L / PE 277Vac / 480Vac, 3L / N / PE, 3L / PE 311Vac / 540Vac, 3L / N / PE, 3L / PE
Power Factor >0.99 (0.8 leading~0.8 lagging)
THDi <3% (Rated Power)
Efficiency
Max. Efficiency 98.70%
European Efficiency  98.50%
MPPT Efficiency  99.90%
Protection
DC reverse polarity protection Yes
Anti-islanding protection Yes
AC short circuit protection Yes
Residual current monitoring unit Yes
Insulation resistance monitoring Yes
Ground fault monitoring Yes
Grid monitoring Yes
PV string monitoring Yes
Surge protection Type II
AFCI protection Optional
Communication
Display LCD / LED+App
Communication Standard:RS485
  Optional:WiFi / DRM / Bluetooth
Standard Compliance
Certification
IEC/EN 62109-1/2, IEC/EN 61000-6-1/3, IEC/EN 61000-6-2/4, EN50549, IEC61727/IEC62116, CEI 0-21/CEI 0-16,
C10/C11, VDE 4105, VDE 0124, G99, RD244, UNE217001, UNE217002, NC RfG, TOR Erzeuger,
NRS097-2-1, NB/T 32004
General Data
Dimensions (W x H x D) 1050 x 660 x 330 mm
Weight  95kg 98kg 101kg
Operating Temperature Range  -30°C ~ +60°C
Cooling Method Smart Cooling
Protection Degree IP66
Max. Operating Altitude 4000m
Relative Humidity 0 ~ 100%
Topology Transformerless
Night Power Consumption <1W
Related Products

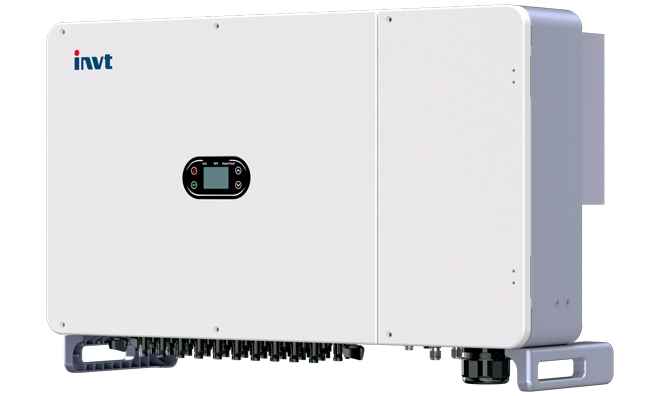

XG 17-25KTR
