• 160% DC input oversizing, Max. PV input current 20A
  • Max. charge/discharge current 50A
  • 110% output power oversizing, 200% peak output power
  • Smart I-V Curve Diagnosis Function: locate PV string faults accurately and automatically detect faults
  • IP66 protection: support outdoor installation
  • DC & AC Type II SPD: prevent lightning damage
  • Plug & Play, EPS Switching Under 10ms
  • AFCI Function (Optional): when an arc-fault is detected the inverter immediately stops operation
  • Multiple working modes


Related Page
XD 5-12KTR
Three Phase Hybrid Inverter

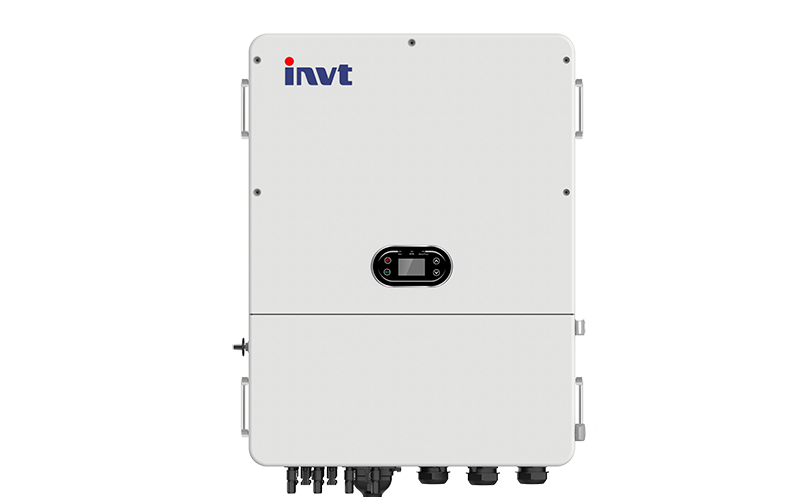

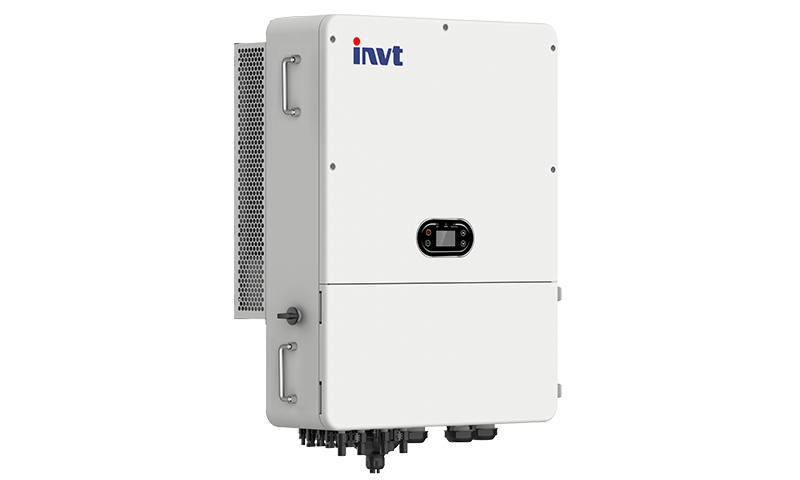

  XD30KTR XD40KTR XD50KTR XD60KTR
Input(PV)
Max. PV Input Power 48000Wp 64000Wp 80000Wp 96000Wp
Max. PV Input Voltage 1100V
Start-up Voltage 200V
Rated Voltage 620V
MPPT Voltage Range 180V - 1000V
Number of MPP Trackers 4
Number of String per MPPT 8
Max. PV Input Current 4*40A
Max. Short Circuit Current per MPPT 4*60A
Output(On-Grid)
Rated Output Power 30kW 40kW 50kW 60kW
Max. Output Power 33kVA 44kVA 55kVA 66kVA
Max. Output Current 50A 66.7A 83.4A 100A
Max. Input Power from Grid 45A 60A 75A 90A
Max. Input Current from Grid 68.4A 91A 113.7A 136.4A
Rated Grid Voltage 3 / N PE, 230V / 400Vac
Rated Grid Frequency 50Hz / 60Hz
THDi(@Rated Power) <3%
Power Factor 0.8 leading~0.8 lagging
Battery
Battery Type Lithium
Battery Voltage Range 160V - 850V
Max. Charge / Discharge Power 44kW 55kW 66kW
Max. Charge / Discharge Current 2*100A
Communication CAN / RS485
Output(EPS)
Rated Output Power 30kW 40kW 50kW 60kW
Max. Output Power 1.5 times / 10s
Max. Output Current 45.6A 60.7A 75.8VA 91A
Switch Time <10ms
Rated Voltage 3 / N PE, 230V / 400Vacz
Rated Frequency 50Hz / 60Hz
Max.AC passrhrough current 150A
THDv(@linear load) <2%
Output(Generator)
Max. Output Power 30kW 40kW 50kW 60kW
Max. Output Current 45.6A 60.7A 75.8VA 91A
Rated Voltage 3 / N PE, 230V / 400Vac
Rated Frequency 50Hz / 60Hz
Efficiency
Max. Efficiency  98.40%
European Efficiency  97.50%
Battery Charge / Discharge Efficiency  97.50%
Protection
Protection  DC Switch, DC Reverse Polarity Protection, Anti-islanding Protection, AC Short Circuit Protection, Residual Current Monitoring, Ground Fault Monitoring, Over Current /Voltage Protection, Battery Active Function, I-V Curve Scan
Surge Protection  Type II
AFCI Protection  Optional
General Data
Display  LCD / LED
Dimension(W x H x D) 620 x 900 x 300 mm
Operating Temperature Range  -30℃~+60℃
Cooling Method  Smart Cooling
Protection Degree   IP66
Max. Operating Altitude  4000m
Relative Humidity   0~95%
Self-consumption  <15W
Topology  Transformerless
