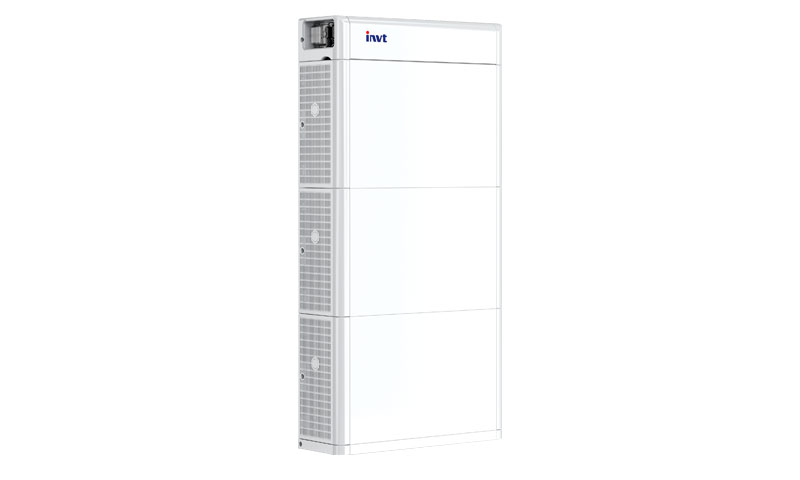

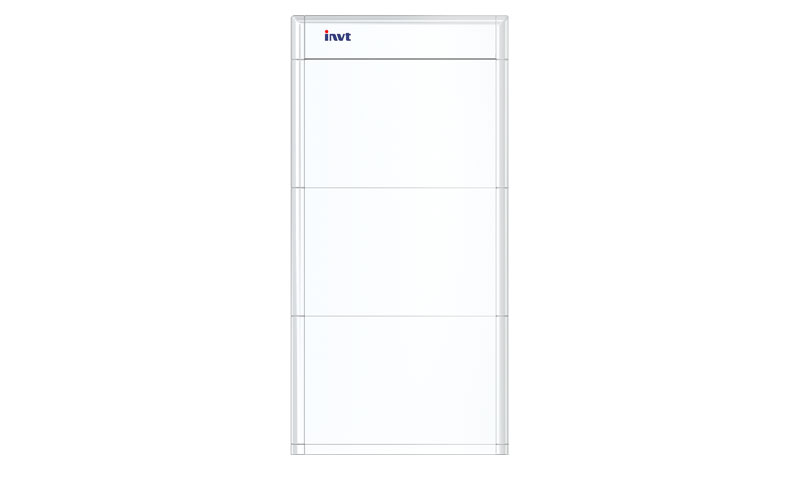

GRP5.12-SLV

Low Voltage Stackable Battery

Key Feature

GRP5.12-SLV low-voltage battery features a modular design, and is compatible with the XD3-6KTL hybrid inverter, and operates in wide temperature. Equipped with LFP cells for maximum safety and life cycle.
  • Modular design, simplifies transport and installation
  • Excellent temperature performance, temperature of discharge @-20°C ~ +60°C
  • Cobalt Free Lithium Iron Phosphate (LFP) Battery: maximum safety and life cycle
  • Capable of high-powered emergency-backup and Off-Grid function


Specification
  GRP5.12-S2LV GRP5.12-S3LV GRP5.12-S4LV
Battery Parameter　
Battery Cell LiFePO4
Battery System Capacity 10.24kWh 15.36kWh 20.48kWh
Module Number 2 3 4
Nominal Capacity 200Ah 300Ah 400Ah
Depth of Discharge 80%
Nominal Voltage 51.2V
Voltage Range 43.2Vdc ~ 56.16Vdc
Nominal Charge / Discharge Current 100A
Dimension (W x H x D) 640 x 890 x 200 mm 640 x 1255 x 200 mm 640 x 1620 x 200 mm
Weight 119kg 167kg 215kg
Installation Stacked
Temperature of Charge 0 ~ 55℃
Temperature of Discharge -20℃ ~ +60℃
Protection Degree IP65
Communication Port RS485, CAN
Display LED
Operation Humidity 5% ~ 95%
Max. Operating Altitude 2000m
Cycle Life 6000@80% DOD, 25℃, 0.5C
Certification CE, IEC, UN38.3, MSDS
