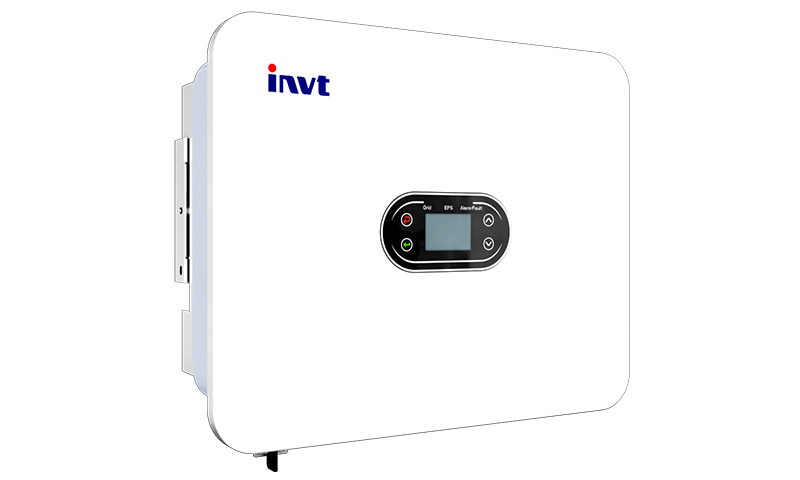

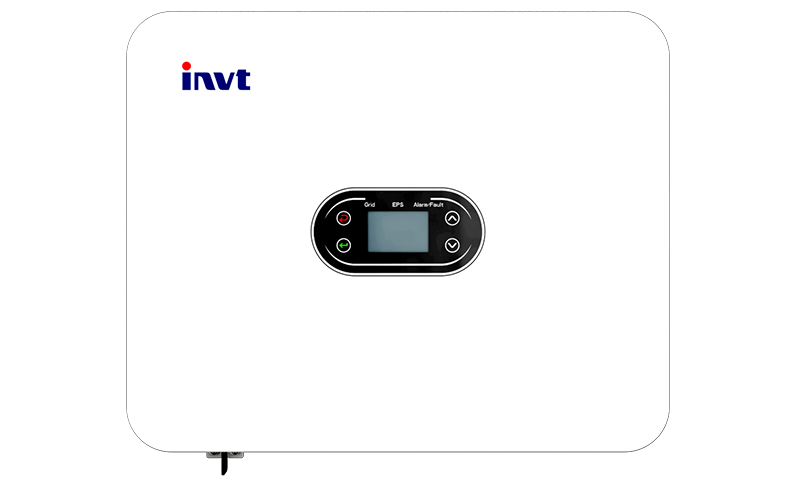

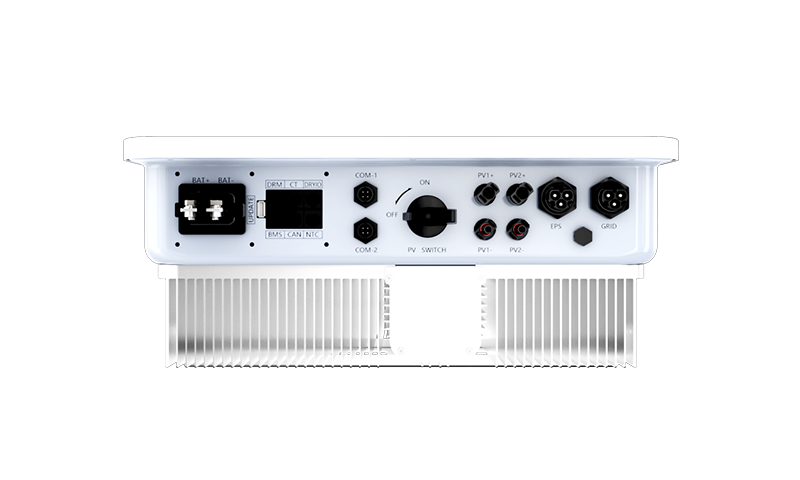

XD 3-6KTL

Single Phase Hybrid Inverter

Key Feature

INVTSolar's XD 3-6KTL is a new generation of single-phase energy storage inverter with enhanced performance. It can adapt to various residential energy storage applications, including simultaneous access of PV, battery, load, grid/diesel generator, built-in self-generation and self-consumption, peak shaving and valley filling, battery priority, backup power, and other operation modes. It also supports multiple units in parallel, AC couple, diesel generators, Anti-reflux, and other energy storage solutions.
  • Max. Efficiency 97.5%
  • Max. PV Input Voltage 600V
  • 150% Peak Output Power
  • 2 MPP Trackers, 150% DC Input Oversizing
  • Max. PV Input Current 16A, Compatible with High Power Modules
  • IP66 Protection Degree: support outdoor installation
  • Smart I-V Curve Diagnosis Function: locate PV string faults accurately and automatically detect faults
  • DC & AC Type II SPD: prevent lightning damage
  • Battery Reverse Connection Protection
  • Plug & Play, EPS Switching Under 10ms
  • Compatible with Lead-acid and Lithium Batteries
  • Supports multiple units in parallel
  • AFCI Function (Optional): when an arc-fault is detected the inverter immediately stops operation


Specification
　 XD3KTL XD3K6TL XD4KTL XD4K6TL XD5KTL XD6KTL
Input（PV）　
Max. PV Input Power 4.5kW 5.4kW 6kW 6.9kW 7.5kW 9kW
Max. PV Input Voltage 600V
Start-up Voltage 100V
Rated Voltage 360V
MPPT Voltage Range 100V~550V
Number of MPP Trackers 2
Number of String per MPPT 1 / 1
Max. Current per MPPT 16A
Max. Short Circuit Current per MPPT 20A
Output（AC）　
Rated Output Power 3kW 3.68kW 4kW 4.6kW 5kW 6kW
Max. Output Power 3.3kVA 3.68kVA 4.4kVA 4.6kVA 5.5kVA 6kVA
Max. Output Current 15A 16A 20A 20.9A 22.7A 27.3A
Rated Voltage 230V
Rated Frequency 50Hz / 60Hz
THDi(@Rated Power) ＜3%
Power Factor 0.8 leading~0.8 lagging
Output（EPS）　
Max. Output Power 3kVA 3.68kVA 4kVA 4.6kVA 5kVA 6kVA
Max. Output Current 15A 16A 20A 20.9A 22.7A 27.3A
Peak Output Power, Time 4.5kW, 10s 5.5kW, 10s 6kW, 10s 6.9kW, 10s 7.5kW, 10s 7.5kW, 10s
Rated Voltage, Frequency 230V, 50Hz
THDv (@Rated Power) ＜3%
Switch Time ＜10ms
Battery　
Battery Type Lithium, Lead-acid
Battery Voltage Range 40V~60V
Max. Charge / Discharge Current 100A
Communication CAN
Efficiency　
Max. Efficiency 97.50%
EU Efficiency 97.20%
Battery Charge/Discharge Efficiency 95.00%
Protection　
DC Switch Yes
DC Reverse Polarity Protection Yes
Anti-islanding Protection Yes
AC Short Circuit Protection Yes
Residual Current Monitoring Yes
Insulation Resistance Monitoring Yes
Ground Fault Monitoring Yes
Over Current / Voltage Protection Yes
Battery Soft Start Protection Yes
Surge Protection Type II
AFCI Protection Optional
Communication
Display LCD
Communication RS485 / CAN / WIFI / 4G / LAN / Bluetooth
Standard Compliance
Certification IEC/EN 62109-1/2, IEC/EN 61000-1/3, EN50549, IEC 61727/62116, G98/G99,
VDE 4105, C10/C11, NRS 097-2-1, CEI 0-21, UNE217001, UNE217002, RD647, NTS, BIS
General Data　
Dimension（W x H x D） 481 x 390 x 200 mm
Weight 21.35kg
Operating Temperature Range -30℃～+60℃
Cooling Method Natural
Protection Degree IP66
Max. Operating Altitude 4000m
Relative Humidity 0~100%
Self-consumption ＜10W
Topology High-Frequency Insolation (For battery)
