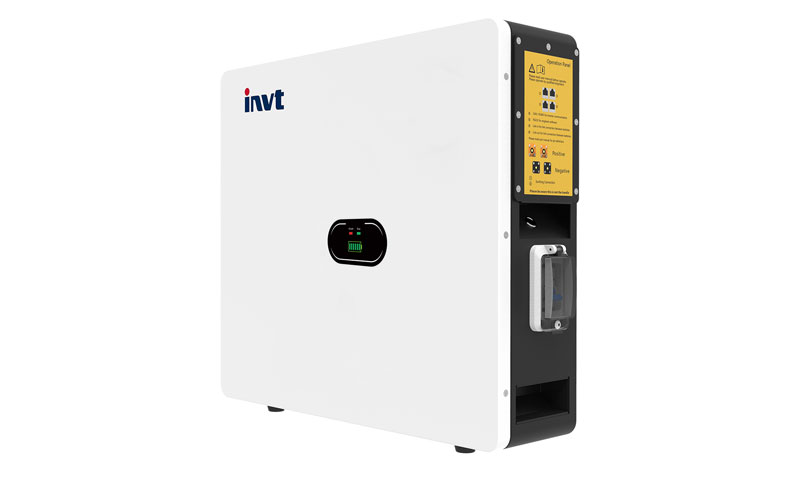

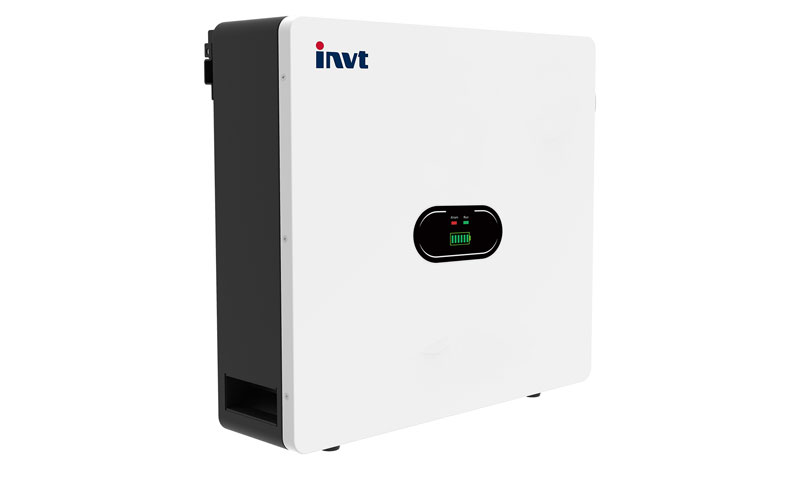

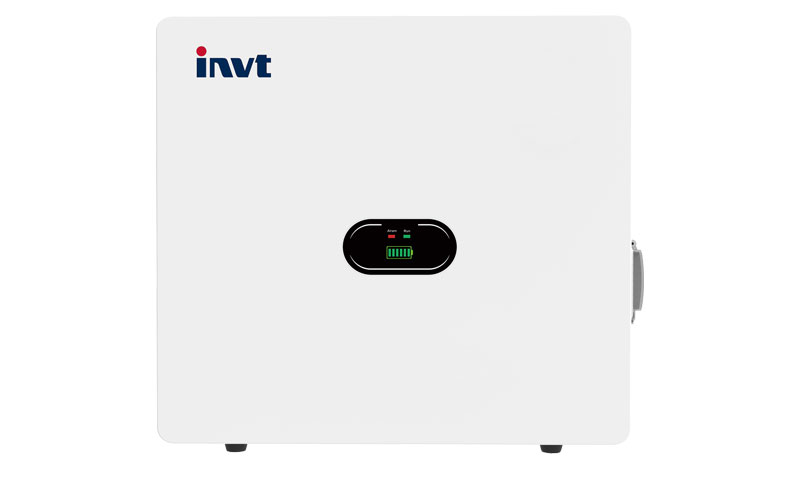

GRP5.12-WLV

Low Voltage Battery

Key Feature

  • Easy installation, plug and play design
  • Flexible capacity, Max.15pcs in parallel to extend capacity
  • Safe & reliable, Lithium Iron Phosphate (LFP) Cell
  • LED Display, SOC, Battery state


Specification
  GRP5.12-WLV
Battery Parameter
Battery Cell LiFePO4
Battery Energy 5120Wh
Nominal Capacity 100Ah
Depth of Discharge 80%
Nominal Voltage 51.2V
Voltage Range 43.2Vdc ~ 56.16Vdc
Nominal Charge / Discharge Current 50A
Max. Charge/Discharge Current 100A
Dimension (W x H x D) 520 x 470 x 141.5 mm
Weight 47.2kg
Installation Wall-mounted / Floor-standing
Temperature of Charge 0 ~ 55℃
Temperature of Discharge -20℃ ~ +60℃
Protection Degree IP65
Parallel Units Up to 15
Communication Port RS485, CAN
Display LED
Operation Humidity 5% ~ 95%
Max. Operating Altitude 2000m
Cycle Life 6000@80% DOD, 25℃, 0.5C
Certification CE, IEC, UN38.3, MSDS
