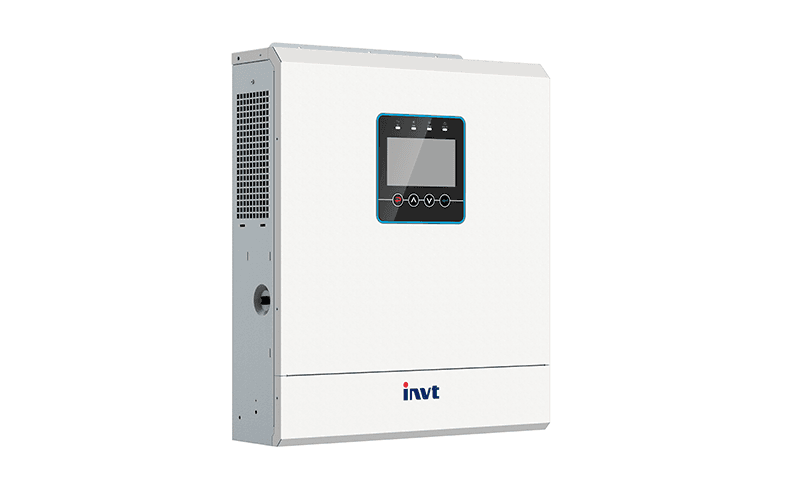

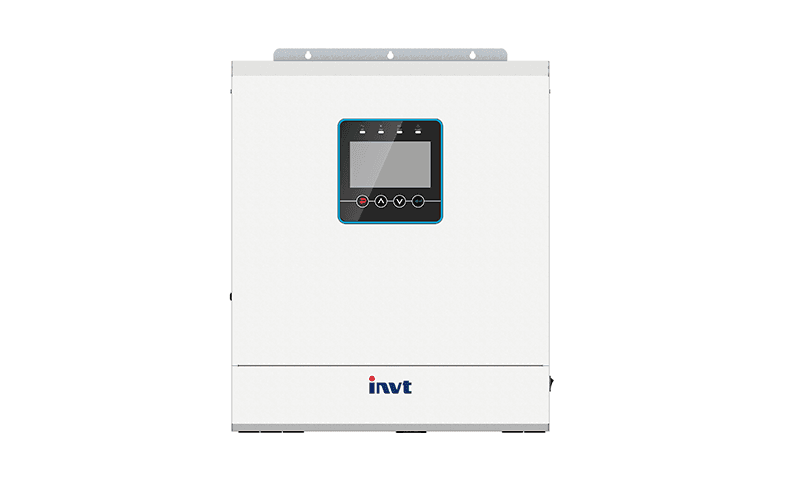

XN12048-MAX

Single Phase Off-Grid Solar Inverter

Key Feature

The XN12048-MAX single-phase off-grid inverter features a dual MPPT design with a maximum input current of 40A. Equipped with RS485/CAN/RS232/WiFi multi-protocol communication interfaces, it delivers real-time monitoring of energy generation, energy storage, and system status, ensuring continuous and reliable power supply for off-grid scenarios.


Specification
Model XN12048-MAX
AC Input
Rated Input Voltage (VAC) 220/230/240; L+N+PE
Voltage Range (VAC) 90~280±3 (normal mode); 170~280±3 (UPS mode)
Frequency (Hz) 50/60(Auto Adaptive)
AC Output
Rated Capacity (kW) 12
Surge Power (kVA) 24
Voltage (VAC) 220/230/240
Power Factor (PF) 1
Frequency 50/60Hz±0.1%
Switch Time (ms) 10(APP/UPS mode), 20(GEN mode)
Wave Form Pure Sine Wave
Overload Capacity (Battery Mode) 1min@102%~125%Load 10s@>125%Load
Max. Efficiency (Battery Mode) 94%@48VDC
Parallel Quantity NA
Charger (PV / AC)
Solar Charger Type Dual MPPTs
Max. PV input Current / Input Power Using One MPPT: 27A/9KW
Using Two MPPTs: 22.5A/Per MPPT, 15kW/Total
MPPT Range@Operating Voltage (VDC) 60-450
Max. PV Open Circuit Voltage (VDC) 500
Max. PV Charge Current (A) 160
Max. AC Charge Current (A) 160
Max. Charge Current (PV + AC) (A) 160
Battery
Rated Voltage (VDC) 48
Floating Charge Voltage (VDC) 54
Overcharge Protection (VDC) 61
Battery Type Lithium and Lead-acid
Interface
HMI LCD
Interface RS232 / RS485 / CAN
Monitoring WiFi (built-in)
General Data
Ingress Protection IP21
Operating Temperature -10℃~60℃
Relative Humidity 5% ~ 95% (Non-condensing)
Storage Temperature -15℃~60℃
Net Weight (kg) 15
Dimensions (H*W*D) 495*425*120
Max. Operating Altitude 4000m(Derating above 1000m)
Related Page
Solar, PV plant, solar inverters, off-grid inverter

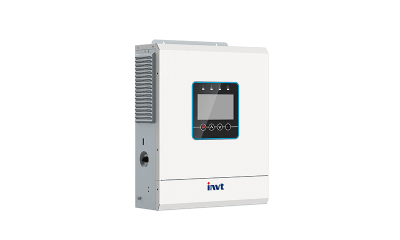

XN6548-MAX
