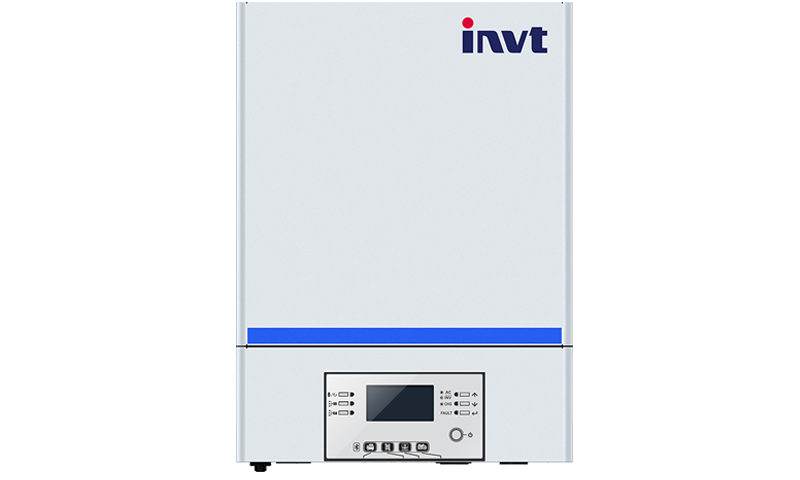

XN 3-5kW

Single-phase Off-grid Solar Inverter

Key Feature

XN3-5kw single-phase off-grid solar inverter is suitable for non-power area, nomadic area, communication base station, power instability area, island, border post, scenic area management office, newspaper booth, battery pack matching of battery manufacturer, etc. Equipped with LED display, XN3-5kw single-phase off-grid solar inverter supports USB/RS232/RS485/Bluetooth/ Dry-contact, with exquisite design
  • 200% AC overload (100ms), withstand transient load impact
  • Wide voltage range and low startup voltage
  • Photovoltaic controller power upgrade with 5kW access
  • Wide MPPT voltage range to compatible with different types of crystalline silicon modules
  • Fast AC bypass charging
  • Support USB/RS232/RS485/Bluetooth/Dry contact
  • Smart battery charger design, optimize battery performance
  • Remote monitoring and operation via PC or mobile phones
  • Multiple charging voltage levels for different batteries
  • Multiple operating modes: PV priority / grid priority / battery priority
  • Detachable LCD control module with multiple communications
  • Support non-linear load


Specification
　 XN30IM-24 XN50IM-48
Rated Power 3kVA / 3kW 5kVA / 5kW
Input (AC)
Max. input Voltage 230Vac
Selectable Voltage Range 170Vac ~ 280Vac (for personal computers)
90Vac ~ 280Vac (for home appliances)
Rated Frequency 50Hz / 60Hz (auto-sensing)
Output (AC)
AC Voltage Regulation(Batt. Mode) 230Vac±5%
Surge power  6kVA 10kVA
Overload Capability ≥130%,5s; 105%~130%,10s
Effciency 93%
Transfer Time 10ms (for personal computers); 20ms (for home appliances)
Waveform Pure Sine Wave
Battery
Battery Voltage 24Vdc 48Vdc
Floating 27Vdc 54Vdc
Overcharge Protection 33Vdc 63Vdc
Battery reverse polarity protection Fuse
Solar Charger & AC Charge
Solar Charger Type MPPT
Maximum PV Array Power 4kW 5kW
MPP Range @ Operating Voltage 120Vdc ~ 450Vdc
Maximum PV Array Open Circuit Voltage 500Vdc
Maximum Charger Current 100A
Protection
Protection AC short circuit protection, AC over current protection,
Output over voltage protection, Over temperature protection etc.
Communication
Display LCD
Communication USB / RS232 / RS485 / Bluetooth / Dry Contact
Standard Compliance
Safety CE
General Data
Dimensions (W x H  x D) 300 x 400 x 115 mm
Weight 9kg 10kg
Operating Temperature -10°C ~ +50°C
Storage Temperature -15°C ~ +60°C
Relative Humidity 5%-95% (non-condensing)
