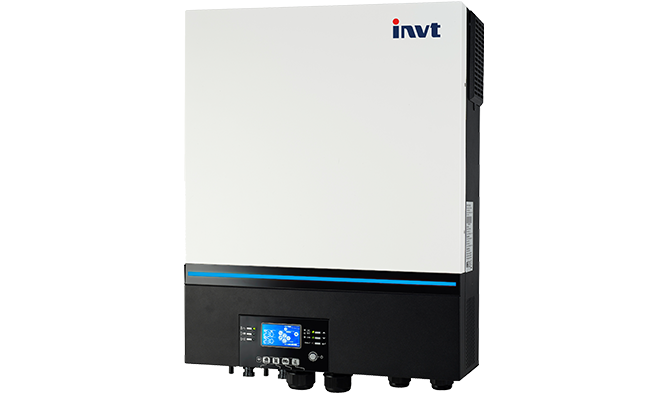

XN 80PA-48

Single Phase Off-Grid Solar Inverter

Key Feature

XN80PA-48 Single Phase Off-Grid Solar Inverter is developed for no power and power unstable area, which can support 6 inverters parallel, suitable for no power area, nomadic area, communication base station, power unstable area, island, border guard post, scenic spot management office, newspaper kiosk, battery manufacturers battery PACK supporting, etc.
  • 200% AC overload (100ms), withstand transient load impact
  • Wide voltage range and low startup voltage
  • Wide MPPT voltage range to compatible with different types of crystalline silicon modules
  • Fast AC bypass charging
  • Diverse communications: Support USB/RS232/RS485/WiFi/Dry Contact
  • Remote monitoring and operation via PC or mobile phones
  • Support 6 units inverters parallel
  • Selectable high power charging current
  • Compatible to Utility Mains or generator input
  • Removable Fan design
  • Detachable LCD control module with multiple communications
Rated Power 8kVA / 8kW
Input (AC)
Rated Input Voltage 230Vac
Selectable Voltage Range 170Vac ~ 280Vac (for personal computers); 90Vac ~ 280Vac (for home appliances)
Rated Frequency 50Hz / 60Hz (auto-sensing)
Output (AC)
AC Voltage Regulation (Batt. Mode) 230Vac±5%
Surge power  16kVA
Overload Capability ≥205%,100ms;≥150%,5s;110%~150%,10s
Effciency 93%
Transfer Time 10ms (for personal computers); 20ms (for home appliances)
Waveform Pure Sine Wave
Battery Voltage 48Vdc
Floating 54Vdc
Overcharge Protection 66Vdc
Battery reverse polarity protection Fuse
Solar Charger & AC Charge
Solar Charger Type MPPT
Maximum PV Array Power 8kW
MPP Range @ Operating Voltage 90Vdc ~ 450Vdc
Maximum PV Array Open Circuit Voltage 500Vdc
Maximum Charger Current 150A
Protection AC short-circuit protection, AC over-current protection,
Output over-voltage protection, Over-temperature protection etc.
Display LCD
Communication USB / RS232 / RS485 / WiFi / Dry Contact
Standard Compliance
Safety CE
General Data
Dimensions (W x H  x D) 432.5 x 553.6 x 147.4 mm
Weight 18.4kg
Operating Temperature  -10°C ~ +50°C
Storage Temperature  -15°C ~ +60°C
Relative Humidity 5%-95% (non-condensing)
